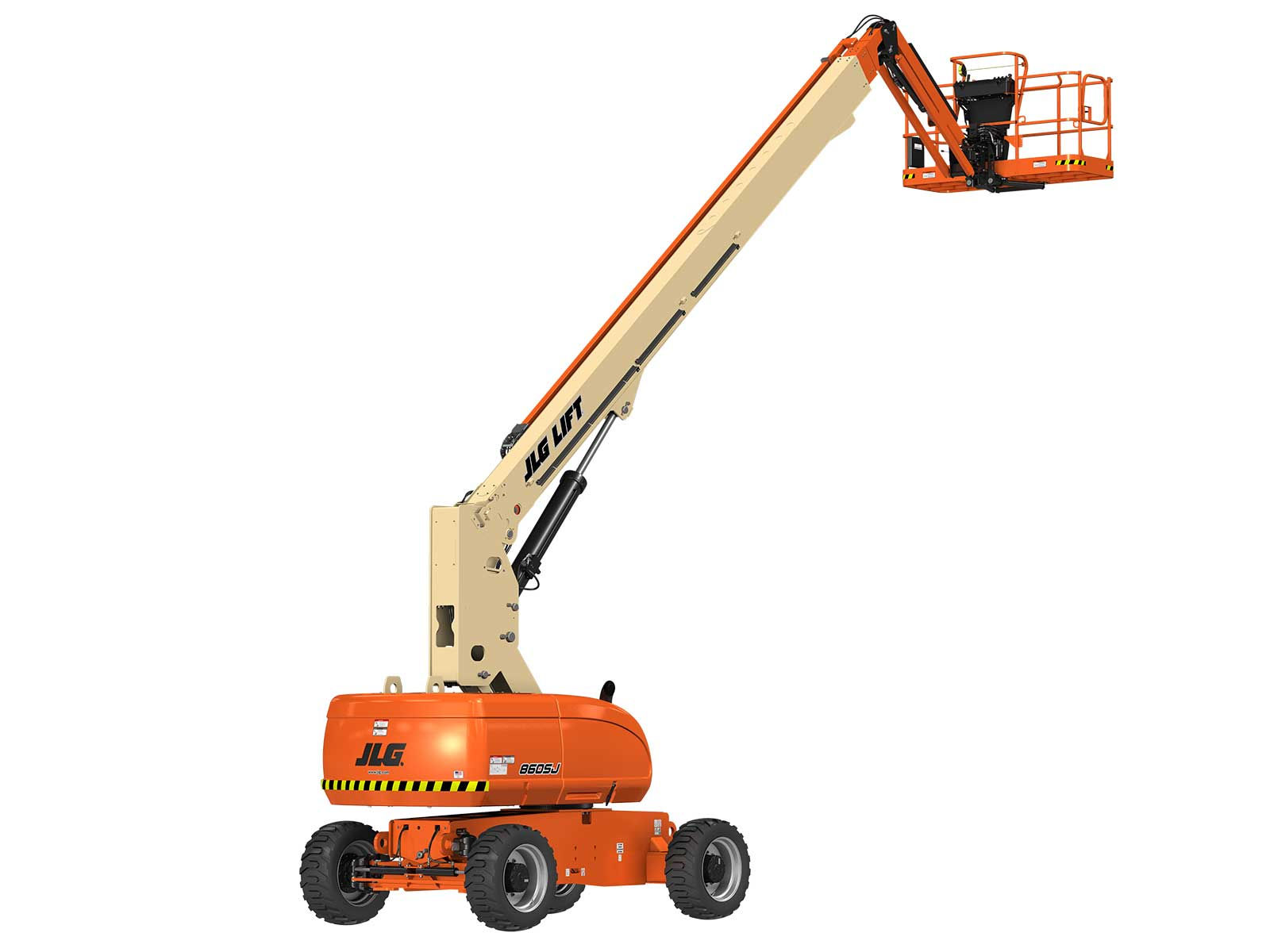

Boom Lift - JLG 860SJ
The JLG 860SJ is a power to platform boom lift capable of extending to 85ft with a reach of 75 feet. The machine has good safety and features.
Keywords: MEWP, JLG860, JLG860SJ,
Contact Our Hire Desk
Specs
Power Source Auxiliary Power 12 Volts DC Capacity - Fuel Tank 31 gal. / 117.35 L Engine Type - Diesel DEUTZ TD 2.9L Tier 4 Final 67 hp Engine Type - Dual Fuel Ford MSG425 84hp Performance Axle Oscillation 8 in. / 0.2 m Drive Speed - 2WD 3.5 mph / 5.63 km/h Drive Speed - 4WD 3.5 mph / 5.63 km/h Gradeability - 2WD 25 % Gradeability - 4WD 45 % Platform Capacity - Restricted 750 lb / 340.19 kg Platform Capacity - Unrestricted 500 lb / 226.80 kg Swing 360 Degrees Swing Type Continuous Turning Radius - Outside 19 ft 8 in. / 5.99 m Jib - Range of Articulation 130 Degrees Dimensional Data Ground Clearance 11 in. / 0.28 m Machine Height 10 ft / 3.05 m Machine Length 40 ft / 12.19 m Machine Width 8 ft 2 in. / 2.49 m Platform Dimension A 3 ft / 0.91 m Platform Dimension B 8 ft / 2.44 m Tailswing 4 ft 8 in. / 1.42 m Tire Size 15-625 Foam Filled Lug Tread Reach Specifications Horizontal Jib Rotation 0 Degrees Horizontal Outreach 75 ft / 22.86 m Platform Height 86 ft / 26.21 m General Capacity - Hydraulic Reservoir 48 gal. / 181.70 L Maximum Ground Bearing Pressure 81 psi / 5.67 Kg/cm2 Machine Weight 36888 lb / 16732.12 kg
